Rotary Joint

Home - Products

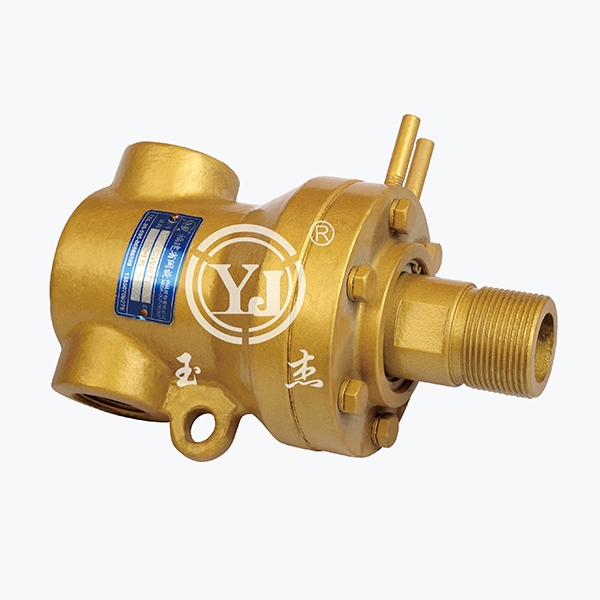

MEQ Rotary Joints

MEQ Rotary Joints

Model：MEQ
Outer pipe：Thread connection or flange connection
Feature：Concave spherical seal; Standard caibon graphite sealing technology; Double widely spaced graphite bearing support ; Precision cast iron shell; Dual-flow design; Automatic centering; Strong deflectiion adaptability.

Technical Parameter：

Media	Steam
Max.Temperature	≤220℃
Max.Pressure	≤1.8MPa
Max.Speed	≤300rpm

Product consultation Back to list

Sales Service Hotline：

0595-8686 1188

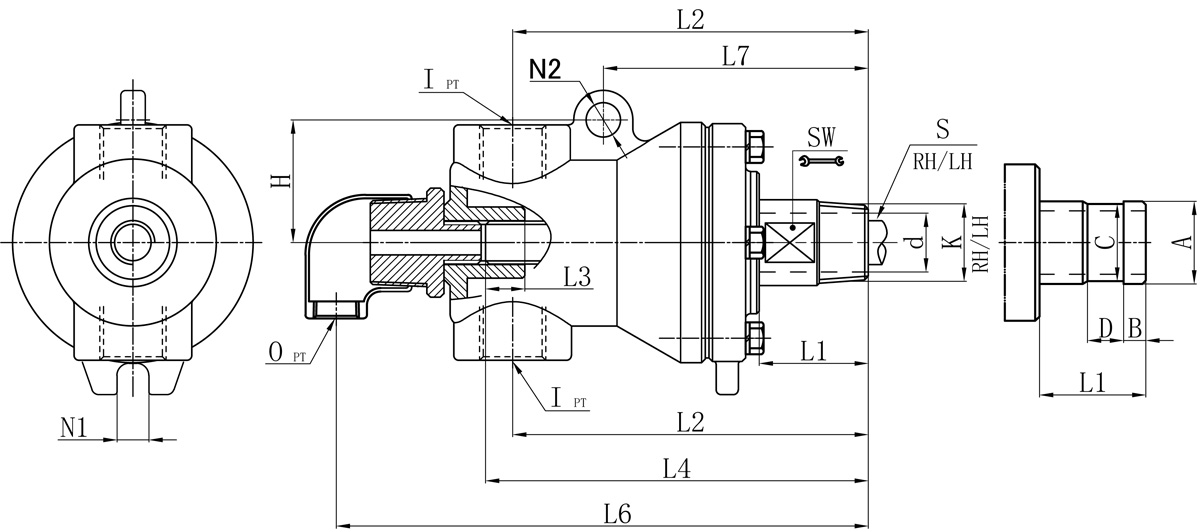

Dimensions

Model	K	I	O	S	d	L1	L2	L3	L4	L6	L7	N1	N2	SW	H
25A	M36×4	RC3/4″	RC1/2″	RC3/8″	23.5	46	147	18	158	220	110	13	14	32	50
32A	M45×3	RC1″	RC1/2″	RC1/2″	30	55	180	20	195	260	136	15	16	41	58

We offer customized products if special sizes.
Specifications are subject to change without notice.
